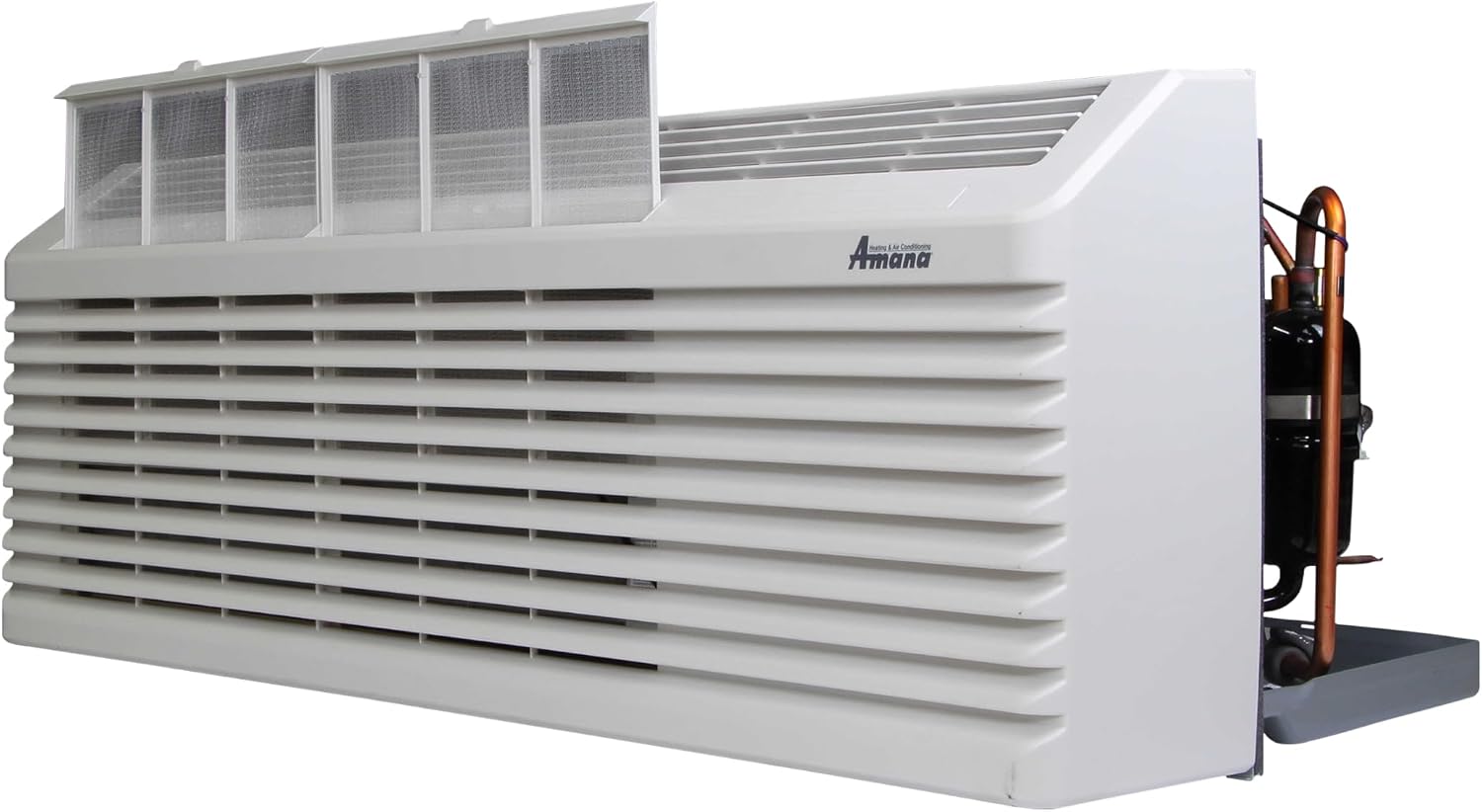

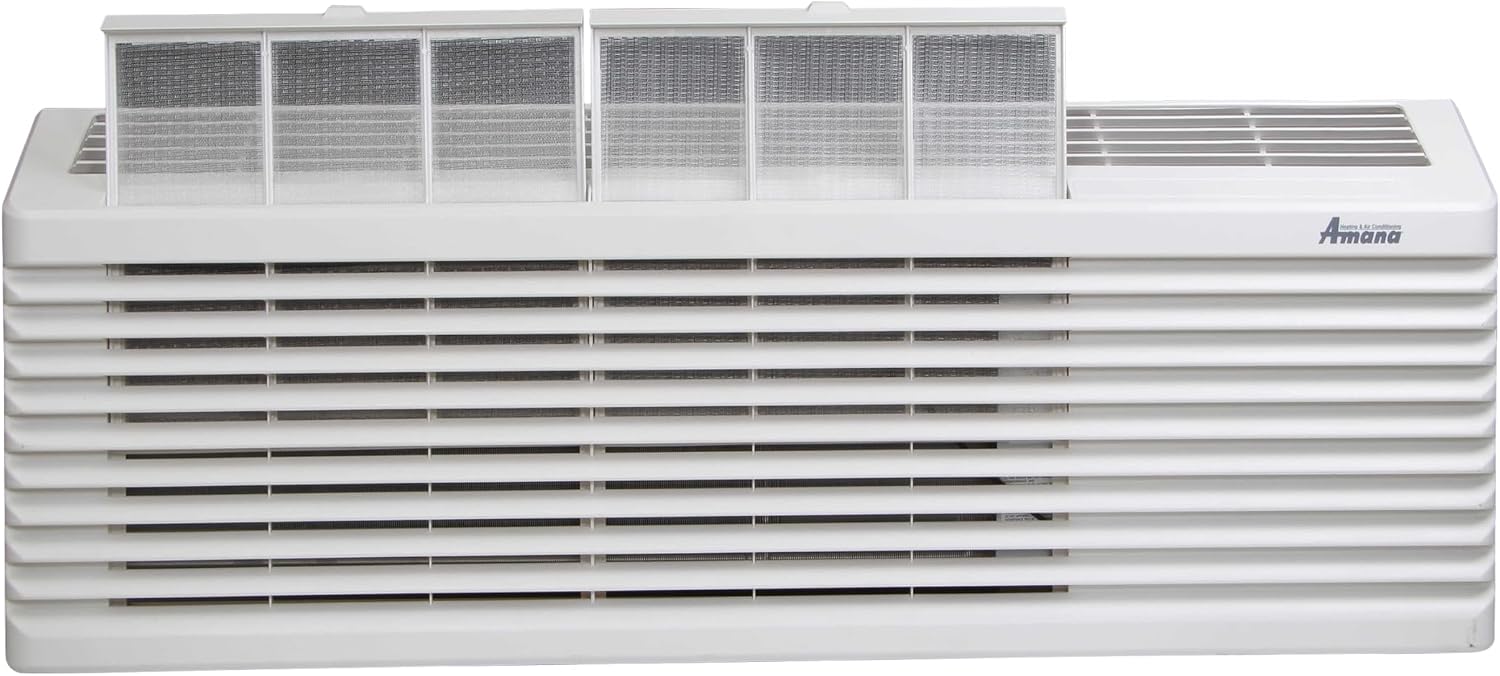

Amana PTC093J35AXXX Commercial J-Series 9,000 / 9,200 BTU Packaged Terminal Air Conditioner with 3.5kW Electric Heat | 208/230V 20A NEMA 6-20P LCDI Power Cord & Eco-Friendly R-32 Refrigerant

The Amana PTC093J35AXXX Commercial J-Series PTAC is a flagship 9,000 / 9,200 BTU Packaged Terminal Air Conditioner engineered for hotel guest rooms, senior living suites, multi-family housing, and healthcare facilities. Powered by next-generation, low-GWP R-32 eco-refrigerant and equipped with a heavy-duty 3.5 kW electric heat strip (approx 12,000 BTU electric heat at 230V, this unit delivers rapid cooling and backup heating for spaces ranging from 300 to 525 sq. ft.

Featuring a whisper-quiet STC 29 sound rating driven by dual fan motors and an indoor tangential blower wheel, the PTC093J35AXXX includes a factory-attached 20-Amp NEMA 6-20P LCDI power cord. Equipped with integrated Bluetooth® and a built-in 2.4 GHz RF transceiver, it pairs natively with Amana Eden Energy Management Systems (EMS) and wireless thermostats (DS01G) to optimize building energy usage.

Electrical & Refrigerant Specs: Operates on 208/230V, 1-Phase, 60Hz power (20A circuit required). Fully California Title 24 and US AIM Act compliant using low-GWP R-32 refrigerant. Fits all standard 42″ x 16″ PTAC wall sleeves. Requires a wired or wireless wall thermostat for guest operation.
