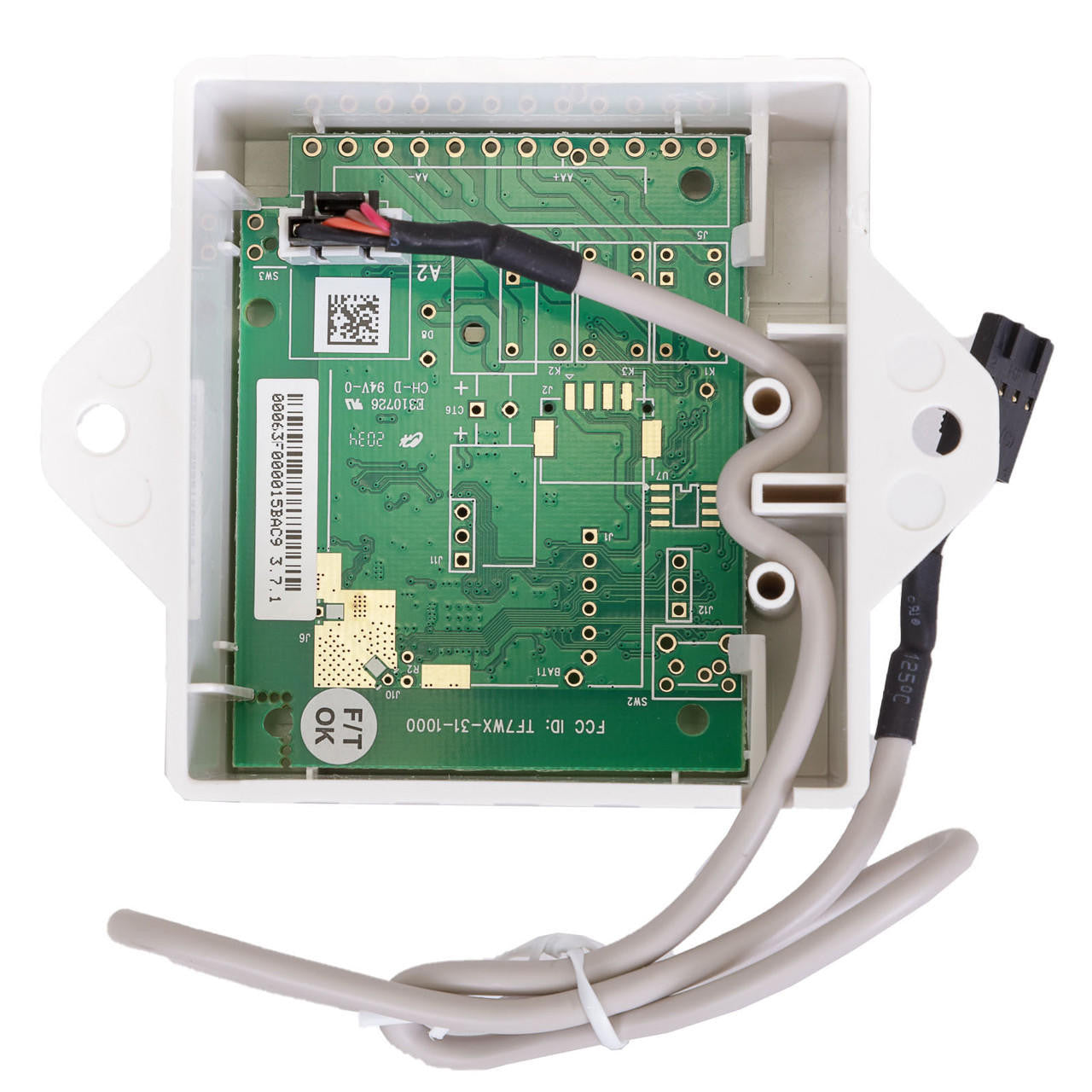

Amana DT01G Commercial DigiTenna 2.4 GHz RF Transceiver Antenna Module | Plug-in Wireless Receiver Card for Amana Eden Energy Management Systems & PTAC Controls

The Amana DT01G DigiTenna RF Transceiver Antenna Module is the dedicated hardware gateway that equips Amana PTAC units with 2.4 GHz wireless communication capabilities. Designed to plug directly into the electronic control board header of Amana PTAC chassis, the DT01G enables two-way Radio Frequency (RF) communication between the air conditioner and remote wireless thermostats, occupancy sensors, and room energy controllers.

By installing the DT01G DigiTenna module, property managers and electrical contractors can integrate wireless motion thermostats (such as the Amana DS01G or DSA02NO), wireless door contact switches (Amana DD01E), and DigiWatt lighting relays (Amana RKLC10M70) without running low-voltage thermostat wire through guest room walls.

Installation Note: Plugs directly into the multi-pin antenna header on the PTAC electronic control board inside the front cabinet junction box. Draws power directly from the board bus—no batteries or external wiring needed.
